Drum Pressure/NIP Gauges / NIP Pressure Indicator

In the printing and packaging industry, precise adjustment of roller pressure is essential for a stable and high-quality production process. Even minor deviations in nip pressure or nip width can lead to issues such as ink build-up, uneven print quality, increased wear, or even web breaks. To help you prevent these problems, we offer a complete range of measurement instruments from NIPControl, designed to accurately and reliably measure the pressure (nip pressure) and width (nip width) of the contact area between rollers.

Whether you're working with offset presses, gravure presses, or other roller-driven systems, our digital nip indicators allow you to adjust your press settings with unmatched precision. This technology is also widely known under terms such as nip roller pressure measurement and is increasingly used in professional print environments worldwide.

Why measure nip pressure and nip width?

A nip is the contact area between two rotating rollers. Within this area, force and pressure are transferred to the substrate or to other rollers, for example, when transferring ink or an image from the plate to the paper. The quality of this nip directly affects the stability and output of your printing process.

• Excessive pressure can cause overloading, wear, or deformation of rubber surfaces.
• Insufficient pressure results in poor ink or emulsion transfer.
• Uneven nip width often indicates roller wear or misalignment.

With NIPControl instruments, you can measure these critical factors digitally, consistently, and without ink residue in just seconds.

Our Products

Our range includes:

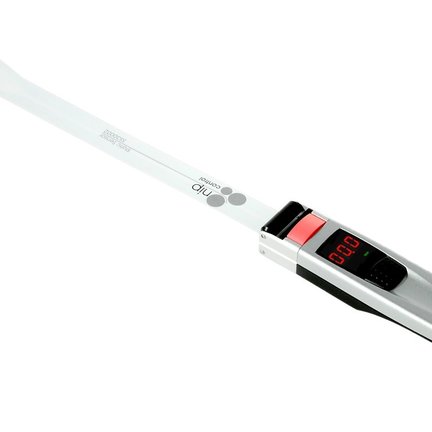

• Roller pressure indicator (nip pressure indicator) – Using cutting-edge nanotechnology, this instrument measures the peak pressure between rollers in Newton/cm². The digital readout shows the exact pressure point in the nip, making it ideal for quality control, troubleshooting, and calibration.
• Nip width indicator – Precisely measures the width of the nip in millimeters or inches. A correct nip width is crucial for optimal performance in both offset and gravure printing.
• Complete sets – Including the handheld device, sensor blade, and optional calibration unit. These kits are plug-and-play and ready for immediate use in any production environment.
• Spare sensors and calibration units – For replacements or expansions of your current measurement system.

Easy to use, maximum reliability

NIPControl measuring devices are designed for daily use in demanding industrial settings. Thanks to digital technology, all measurements are objective and operator-independent. This makes it easier to carry out internal quality checks, perform trend analyses, and optimize settings for different production jobs.

Improve Your Process

Regularly measuring nip pressure and width helps you prevent defects, reduce production costs, and extend the lifespan of your equipment. Investing in professional measurement tools ensures a stable and reproducible process output.

Explore our complete range and order the solution that fits your printing operation. Do you have questions about specific applications? We’re happy to help.
